FEATURED PROJECT
Level 2 High-Power Rocket
Designed, analyzed, manufactured, tested, and launched a dual-deploy high-power rocket to 2,470 ft, earning my Tripoli Level 2 certification.
74 in • J270W • 2,470 ft • Dual Deploy
.d3469cb9.jpg)
FEATURED PROJECT
Designed, analyzed, manufactured, tested, and launched a dual-deploy high-power rocket to 2,470 ft, earning my Tripoli Level 2 certification.
74 in • J270W • 2,470 ft • Dual Deploy
01
This project was developed as my Tripoli Level 2 high-power rocketry certification vehicle. I took the rocket through the complete engineering process from preliminary sizing and simulation through detailed design, manufacturing, testing, and flight.
The vehicle incorporated a redundant dual-deployment recovery system and custom avionics bay while being designed around stability, structural, recovery, and flight-performance requirements.
2,470 ft
Actual Apogee
J270W
Aerotech Motor
Level 2
Tripoli Certification
02
OpenRocket simulations were used to evaluate vehicle stability, predicted flight performance, and component placement before manufacturing. CAD was then used to develop the vehicle configuration and avionics hardware.

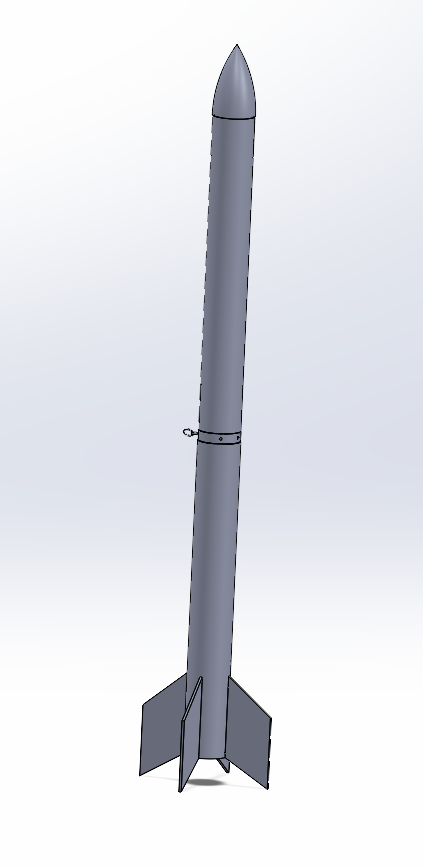

Vehicle CAD

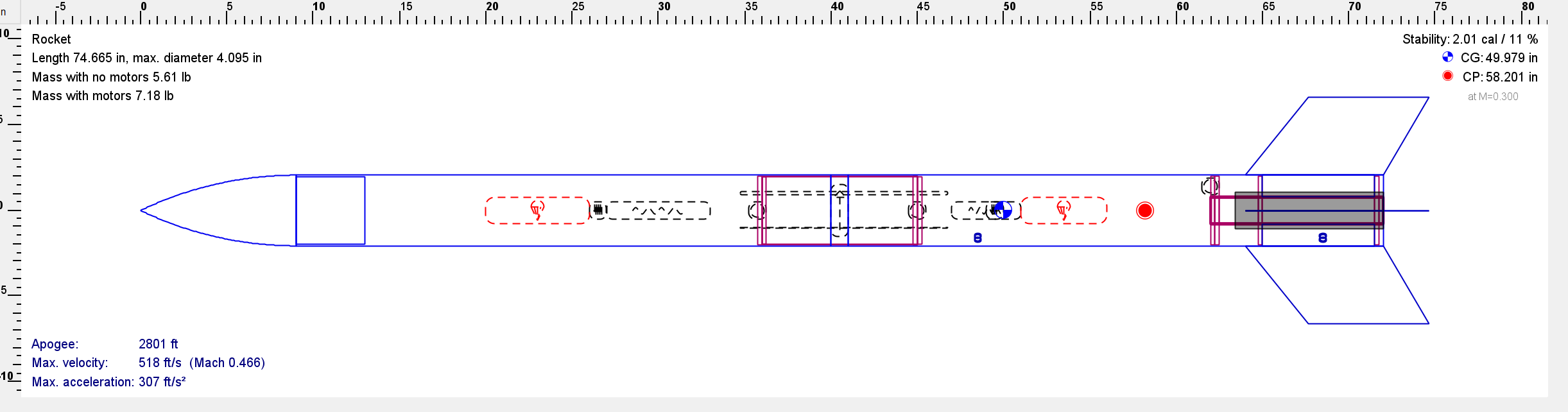

OpenRocket Flight Simulation
03
Hand calculations were used alongside simulation to evaluate aerodynamic performance, structural margins, and recovery loads. Analysis included vehicle stability, maximum dynamic pressure, fin flutter, parachute snatch forces, and black-powder ejection charge sizing.

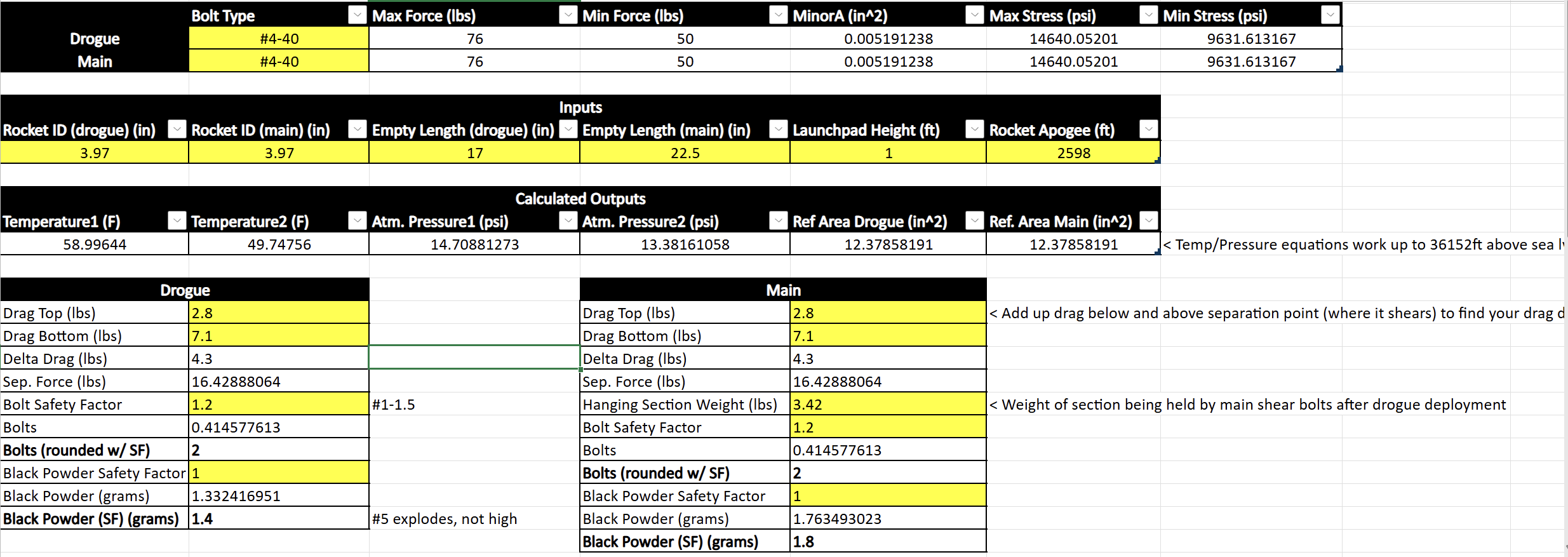

Flight & Recovery Analysis

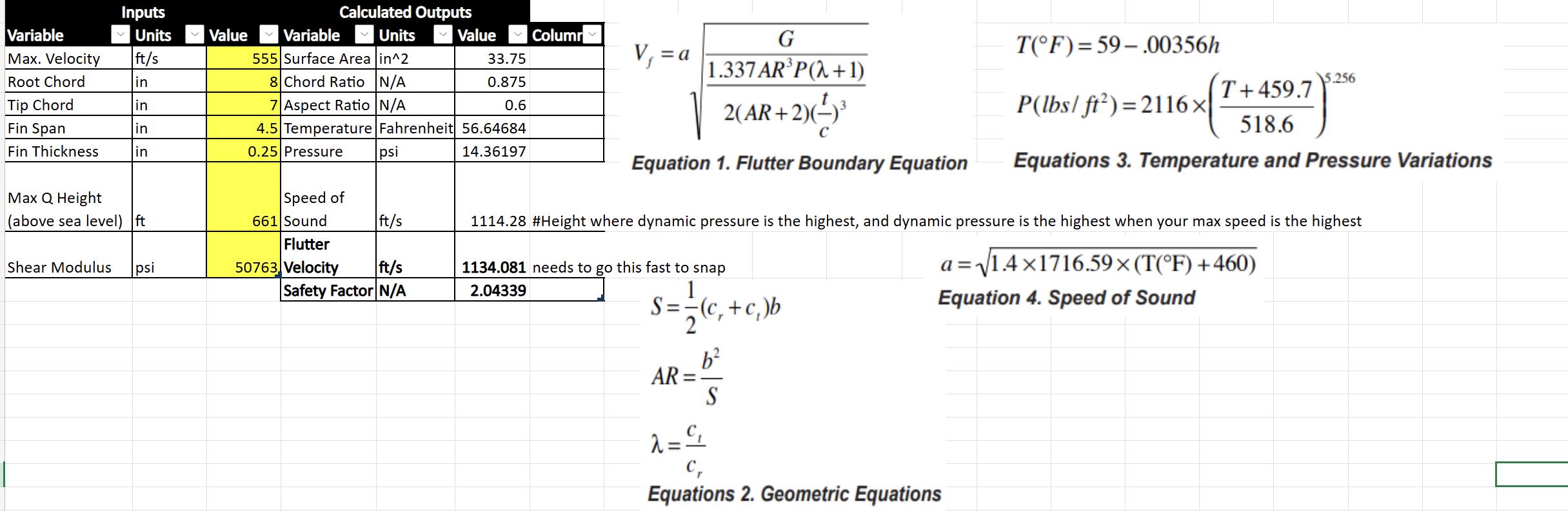

Fin Flutter Analysis
04

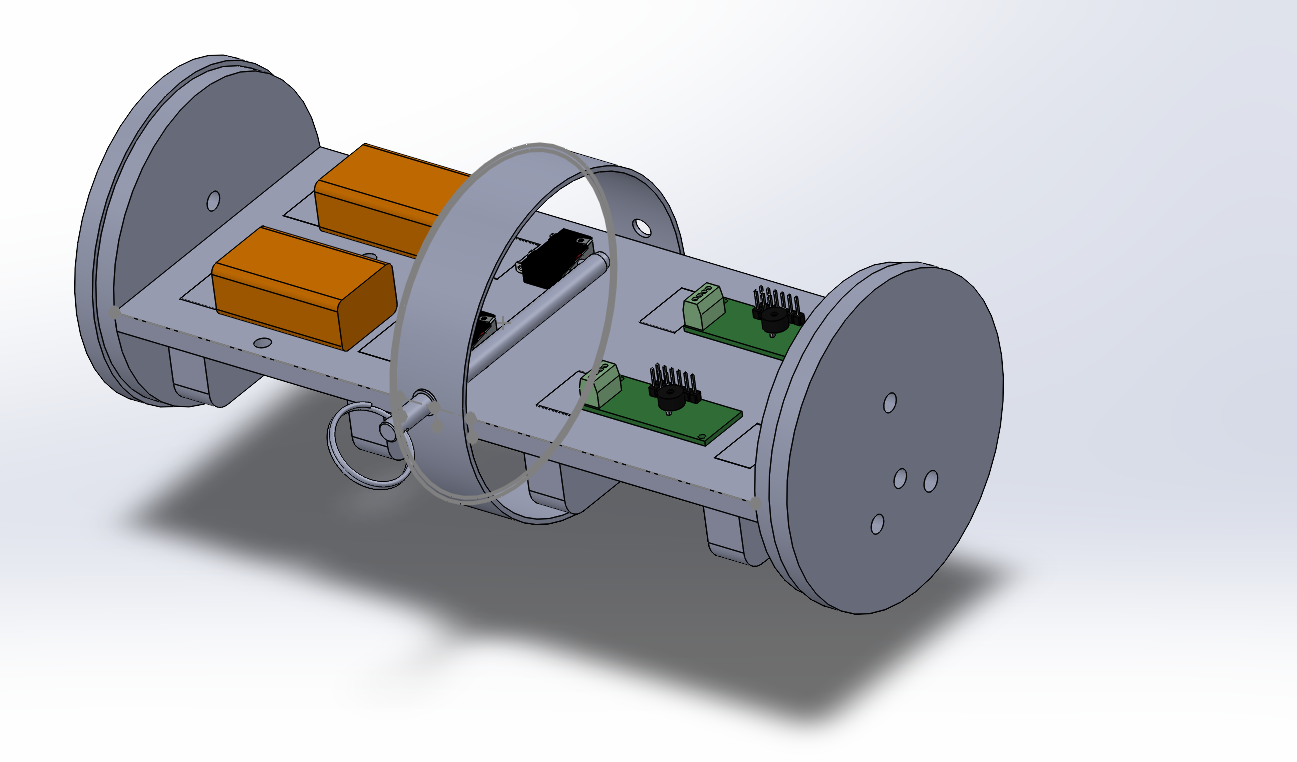

Avionics Bay CAD

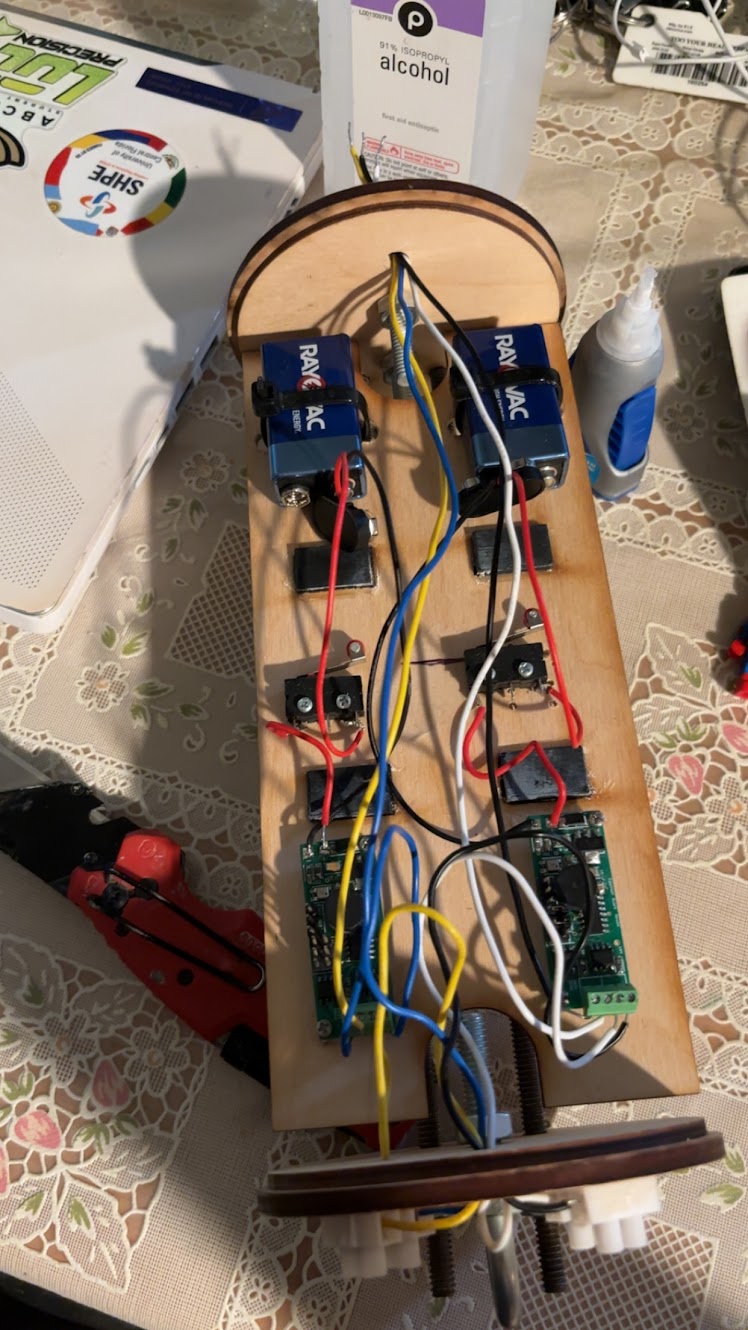

As-Built Avionics Bay
Designed the avionics bay around two Eggtimer Quark flight computers to provide redundant electronic deployment capability throughout flight.
Configured the recovery system to deploy a drogue parachute at apogee followed by the main parachute at 800 ft, reducing descent speed for final recovery.
Verified deployment electronics, continuity, and black-powder charge sizing through ground testing before flight.
Level 2 Certification Flight
The vehicle successfully flew to an apogee of 2,470 ft, completed both recovery events, and was recovered intact. The flight resulted in successful Tripoli Level 2 high-power rocketry certification.
